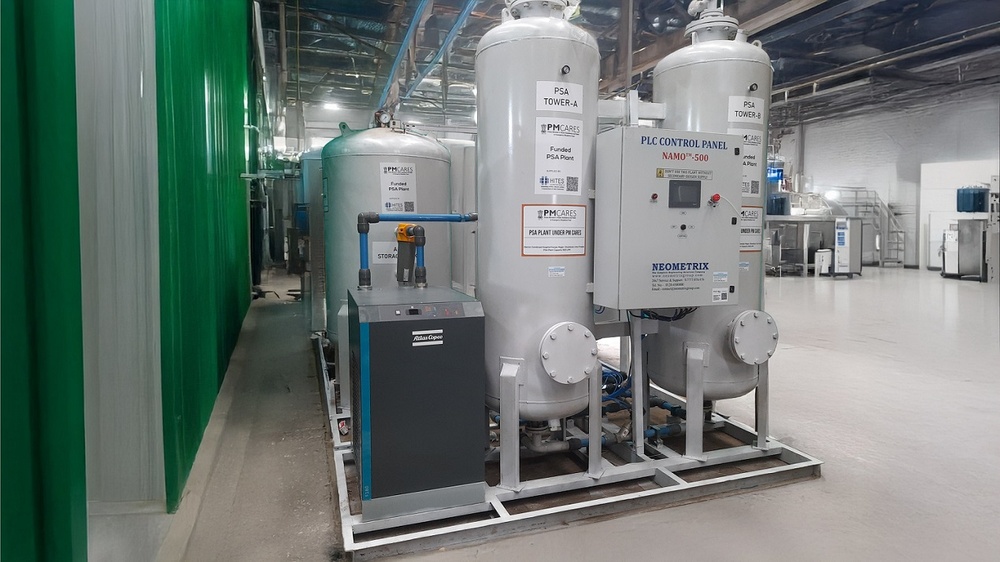

PSA Oxygen Generation Plant 500 LPM - Medical-Grade Onsite Oxygen System

Details

At Neometrix Group, we specialize in providing advanced medical and industrial oxygen solutions that ensure a continuous, high-purity oxygen supply for hospitals, healthcare facilities, and critical applications. Our 500 LPM PSA Oxygen Generation Plant is a cutting-edge, fully automated system that eliminates the need for traditional oxygen cylinders by producing medical-grade oxygen (93±3%) onsite. Built with state-of-the-art PSA technology, our system offers cost-effective, energy-efficient, and highly reliable oxygen production, meeting international medical standards. With a robust design, intelligent automation, and minimal maintenance requirements, Neometrix Group is committed to empowering healthcare providers and industries with a sustainable, self-sufficient oxygen generation solution that ensures life-saving support whenever needed.

The 500 LPM PSA Oxygen Generation Plant is a cutting-edge medical-grade oxygen generation system designed for hospitals, emergency healthcare facilities, and industrial applications. This system eliminates the need for traditional oxygen cylinders, providing an onsite, uninterrupted supply of high-purity oxygen (93±3%) using Pressure Swing Adsorption (PSA) technology.

With fully automated operation, energy-efficient components, and low maintenance requirements, this plant ensures cost-effective and reliable oxygen production for healthcare institutions. It is built with high-quality components and adheres to Indian Medical Standards, ISO 8573 Class 4 air quality norms, and international medical oxygen regulations.

Working Principle – PSA Technology
The 500 LPM PSA Oxygen Generation Plant operates on Pressure Swing Adsorption (PSA) technology, a proven method of separating oxygen from nitrogen using molecular sieves. The process ensures continuous oxygen supply by alternating between adsorption and regeneration cycles in twin-tower PSA beds.
1. Air Compression & Filtration – Ambient air is compressed, dried, and filtered to remove moisture, dust, and oil particles before entering the PSA unit.
2. Adsorption Cycle – The compressed air passes through Zeolite Molecular Sieves, which selectively adsorb nitrogen while allowing oxygen to pass.
3. Regeneration Cycle – Once one PSA tower is saturated with nitrogen, the system automatically switches to the second tower, while the first tower releases nitrogen into the atmosphere and regenerates.
4. Continuous Oxygen Flow – The cyclic process repeats continuously, ensuring a steady supply of high-purity oxygen.

Technical Specifications
  • Oxygen Production Capacity – 500 Liters Per Minute (LPM)
  • Oxygen Purity – 93±3% (as per medical standards)
  • Oxygen Output Pressure – 4-5 Bar
  • Dew Point – (-) 40°C to (-) 60°C
  • Technology – Pressure Swing Adsorption (PSA)
  • Adsorbent Material – High-quality Zeolite Molecular Sieves
  • Air Flow Requirement – Approximately 60 CFM
  • Power Supply – 415V, 50Hz, 3-Phase
  • Automation – PLC-based system with HMI touchscreen interface
  • Noise Level – Below 75 dB
  • Backup Power – 30-minute UPS backup for emergency support

Key Features & Advantages
   1. High-Purity Medical-Grade Oxygen Production
      • Provides a constant supply of 93±3% pure oxygen, suitable for hospital pipelines, ICUs, and ventilators.
      • Ensures compliance with medical and healthcare standards to meet regulatory guidelines.

   2. Fully Automated & Intelligent PLC Control System
      • The PLC-based automation allows seamless operation with minimal manual intervention.
      • A user-friendly HMI touchscreen interface enables real-time monitoring of oxygen purity, pressure, and flow rate.
      • The system is equipped with smart alerts and alarms for low purity levels, pressure fluctuations, and system malfunctions.

   3. Energy-Efficient & Low Maintenance Design
      • The plant is optimized for low power consumption, reducing operational costs.
      • The self-cleaning filtration system and long-lasting Zeolite Molecular Sieves (5+ years lifespan) minimize maintenance.
      • Auto-drain valves and self-regulating filters keep the system running efficiently with minimal intervention.

   4. Robust & Reliable Industrial-Grade Components
      • Screw-type Air Compressor – Provides stable and efficient compressed air supply.
      • Medical-Grade Air Receiver Tank – Stores compressed air to ensure continuous airflow.
      • Advanced Filtration System – Multi-stage filters remove dust, oil, and moisture, enhancing PSA efficiency.
      • Twin-Tower PSA System – Alternates between adsorption and regeneration cycles to maintain consistent oxygen output.

   5. Safety & Compliance with Medical Standards
      • The plant is equipped with oxygen purity sensors, pressure regulators, and fail-safe mechanisms.
      • Built-in power fluctuation protection ensures consistent operation with a Servo Voltage Stabilizer.
      • Emergency Stop Button allows instant shutdown during hazardous situations.
      • The system has an exhaust gas outlet for safe nitrogen disposal, reducing oxygen contamination risks.

   6. Compact & Modular Design for Easy Installation
      • Pre-assembled and factory-tested, allowing for quick installation and commissioning.
      • Requires minimal space, making it ideal for hospitals, mobile medical units, and industrial applications.

System Components & Their Functions
   The 500 LPM PSA Oxygen Generation Plant consists of high-quality, industrial-grade components designed for reliability, efficiency, and durability.
   A. Air Compression & Purification System
      • Screw-Type Air Compressor – Compresses ambient air to the required pressure.
      • Air Receiver Tank – Stores compressed air and ensures stable airflow.
      • Pre-Filters & Micron Filters – Remove dust, oil mist, and fine contaminants.
      • Refrigerated Air Dryer – Eliminates moisture for dry air supply.
      • Activated Carbon Filter – Removes hydrocarbons and residual oil traces.

   B. PSA Oxygen Generation Unit
      • Twin-Tower PSA System – Filled with high-quality Zeolite Molecular Sieves to separate oxygen from nitrogen.
      • Oxygen Buffer Tank – Stores the produced oxygen before supply.
      • Micro & Bacterial Filters – Ensure high-purity, medical-grade oxygen.

   C. Control & Monitoring System
      • PLC Control Panel with HMI Touchscreen – Enables real-time monitoring and fully automated operation.
      • Oxygen Purity Sensor – Continuously monitors oxygen levels and triggers alarms if purity drops.
      • Emergency Alarm System – Alerts for low purity, pressure fluctuations, and system failures.

Installation & Operational Guidelines
    1. Installation Requirements
      • Should be installed in a well-ventilated room with temperature below 43°C.
      • Requires a 3-phase 415V AC power supply with Servo Voltage Stabilizer.
      • Oxygen pipeline connection must be properly secured.
      • Exhaust gas must be vented safely to the atmosphere.

    2. Operational Steps
      1. Switch on Main Power & Servo Voltage Stabilizer.
      2. Start Compressor & Air Dryer.
      3. Activate PLC & HMI Control Panel.
      4. Monitor oxygen purity and pressure.
      5. System enters auto-mode, generating oxygen continuously.

Routine Maintenance & Service Schedule
      • Daily – Check compressor oil levels and system pressure.
      • Weekly – Inspect oxygen purity levels and air dryer condensate.
      • Monthly – Check all filters and drainage systems.
      • Semi-Annually – Replace filter elements and calibrate oxygen purity sensors.
      • Annually – Perform full system diagnostics and valve maintenance.
      • Every 5-6 Years – Replace Zeolite Molecular Sieves in PSA towers.

Applications
      • Hospitals, ICUs, and Emergency Medical Facilities
      • Oxygen Therapy & Ventilator Support
      • Industrial & Research Laboratories
      • Field Hospitals & Military Medical Units
      • Disaster Relief & Mobile Healthcare Units
