About

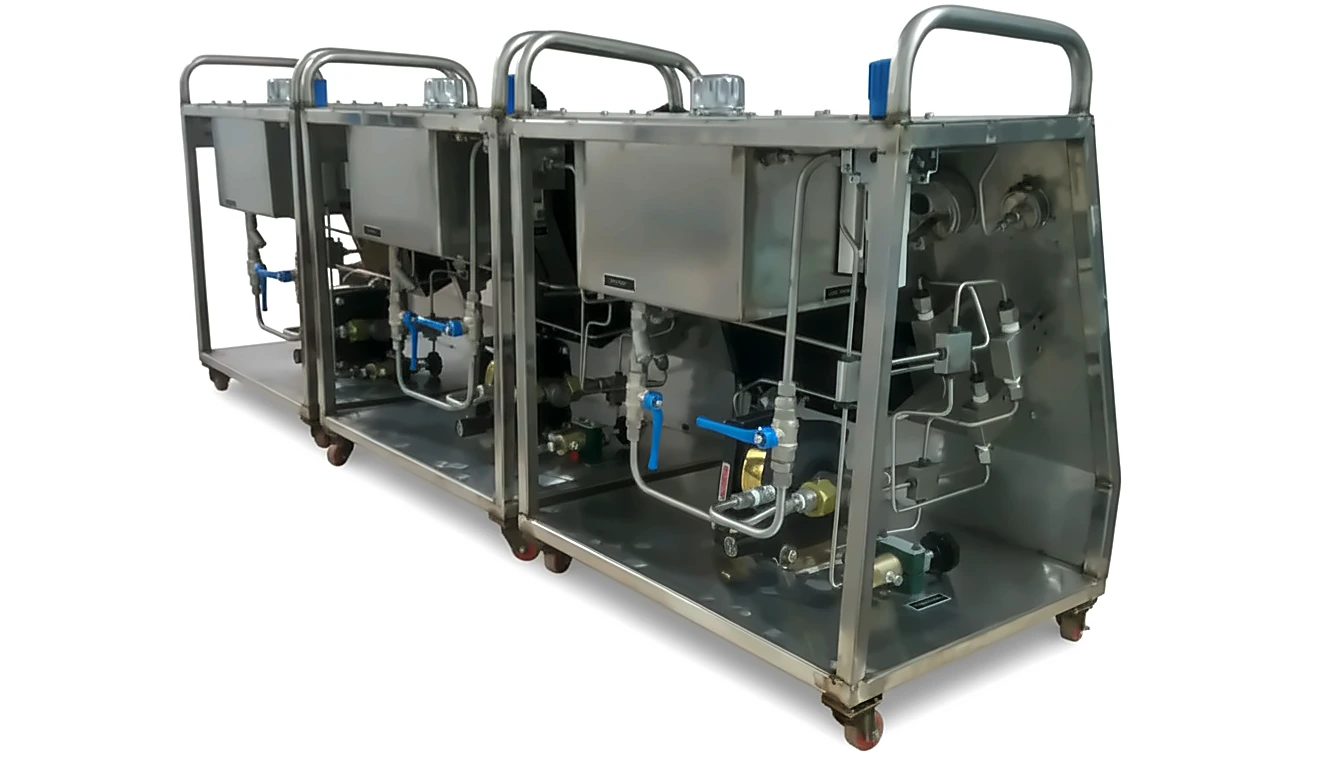

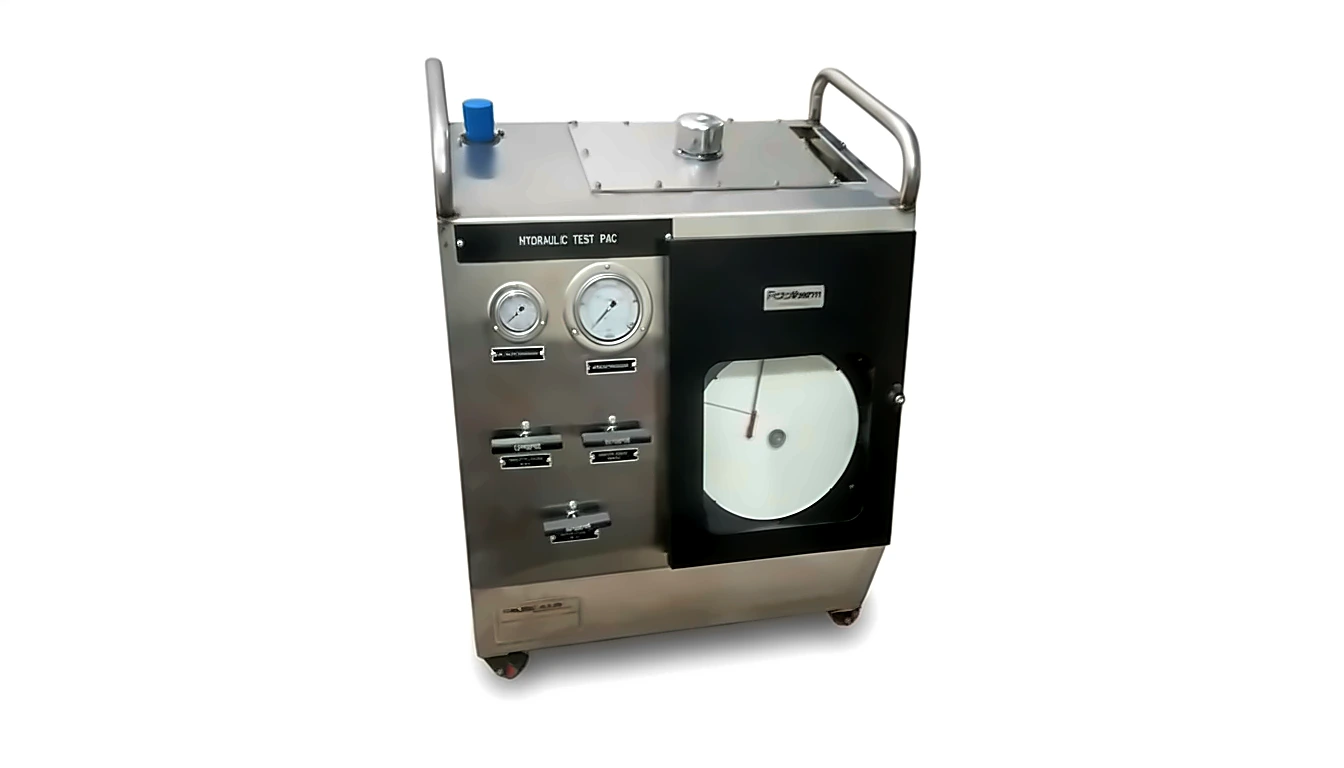

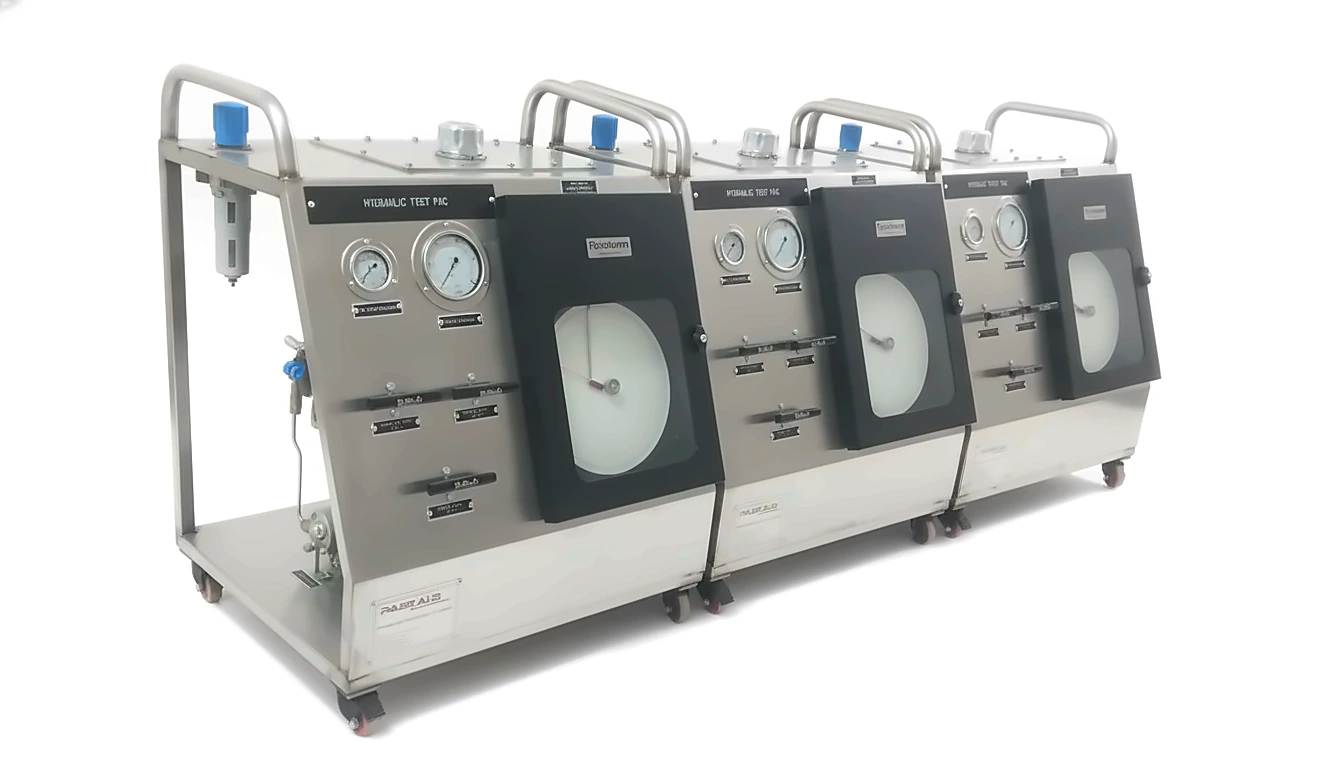

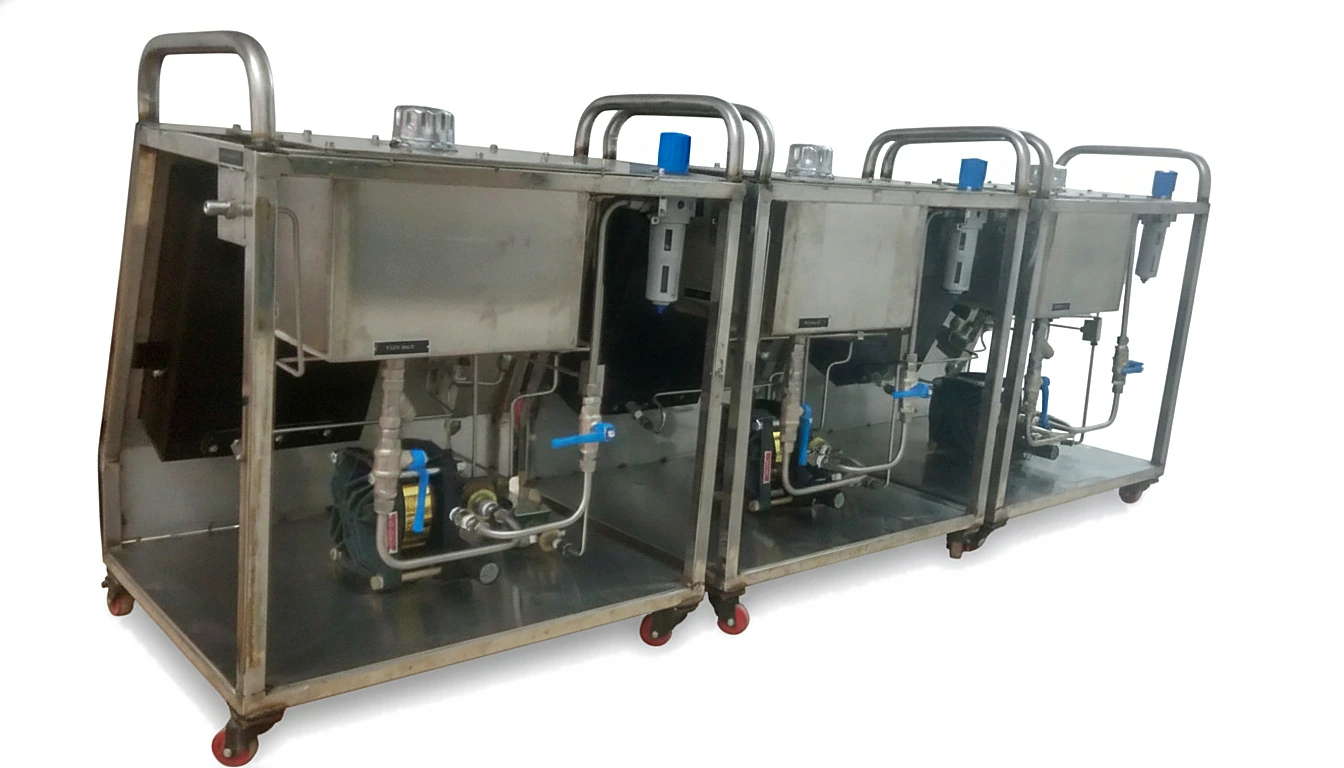

Hydraulic Test Pac with chart recorder is portable, light weight hydro testing equipment designed for shop floor and onsite pressure testing and generates the chart to monitor the process. The unit is self-contained and powered by compressed air. The System requires a supply of compressed shop air to power the liquid pump. A simple adjustment of the air drive pressure regulator setting determines the final output pressure and the pump will automatically stall when the desired hydraulic pressure is attained. When the pump stalls it consumes no further energy and can remain in stall condition indefinitely.

Image Gallery

Technical Details

Specifications

Air Filter - Size: 1/4" BSPF, W.P: 150 psi
Pressure Gauge - Range : 0 to 16 bar, Accuracy : ±0.5 %, Size:100 mm, P.M Rear Connection: 1/2 " BSPM
Ball Valve - Size: 1/4" BSPF, W.P: 150 psi, P.M ball valve
Hydraulic Pump - Model: MS-110
Level Gauge - LG2 – 05

Applications

The unit is self-contained and powered by compressed air. The System requires a supply of compressed shop air to power the liquid pump. A simple adjustment of the air drive pressure regulator setting determines the final output pressure and the pump will automatically stall when the desired hydraulic pressure is attained. When the pump stalls it consumes no further energy and can remain in stall condition indefinitely.
