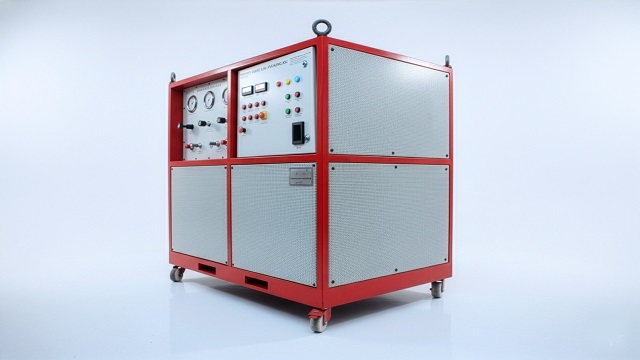

Hydraulic Flushing Rig for Defence, Aerospace & Industrial Hydraulic Systems

Details

The Hydraulic Flushing Rig is an advanced and industrial-grade system designed to meet the rigorous demands of hydraulic system cleaning and maintenance. Developed by Neometrix Defence Limited, it provides a robust and efficient solution for flushing pipelines and hydraulic systems by eliminating contaminants that may cause damage,
inefficiency, or premature equipment failure. Engineered with precision and cutting-edge technology, this rig ensures compliance with NAS, ISO, and SAE cleanliness standards, making it suitable for use in industries such as aerospace, automotive, defense, energy, and heavy machinery.

Key Features and Advantages
1. State-of-the-Art Flushing Process
   - Employs a high-turbulence flow mechanism to dislodge and carry contaminants out of the hydraulic system.
   - Continuous fluid recirculation with integrated filtration ensures consistent and measurable cleanliness levels.
   - Cleanliness verified through NAS/ISO cleanliness codes, achieving micrometer-level precision.

2. Sophisticated Multi-Stage Filtration System
   - Includes booster line filters 10, 6, 3 microns, pressure line filter 3 microns, and return line filter 10microns.
   - Each filter has visual and electrical clogging indicators to notify users when replacements are required.
   - Eliminates even the finest contaminants, ensuring the protection of downstream equipment.

3. High-Capacity Hydraulic Reservoir
   - Constructed from corrosion-resistant SS-304 stainless steel with a massive 600-liter capacity.
   - Features a level indicator, temperature gauge, and a breather filter 40 microns to ensure the fluid remains uncontaminated during operation.

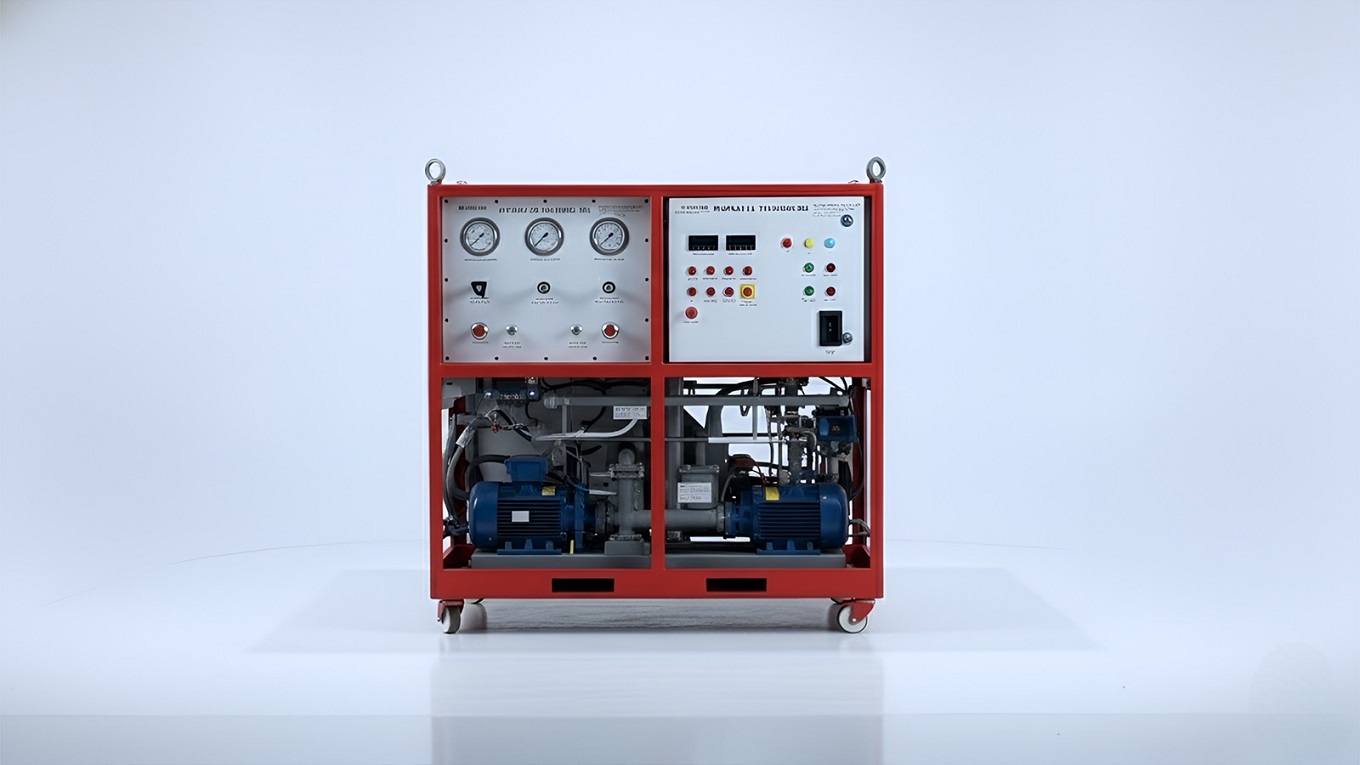

4. Dual Motor Pumping System for Precision and Power
   - Variable Displacement Pump.
   - Maximum working pressure 350 bar.
   - Displacement 71 cc/rev.
   - Flow capacity Up to 140 LPM at reduced pressure and 35 LPM at maximum pressure.
   - Booster Pump:
   - Fixed displacement pump with a maximum flow of 200 LPM and a pressure of 10 bar.
   - Both pumps are driven by high-efficiency three-phase induction motors 5.5 kW and 30 kW ensuring continuous duty performance.

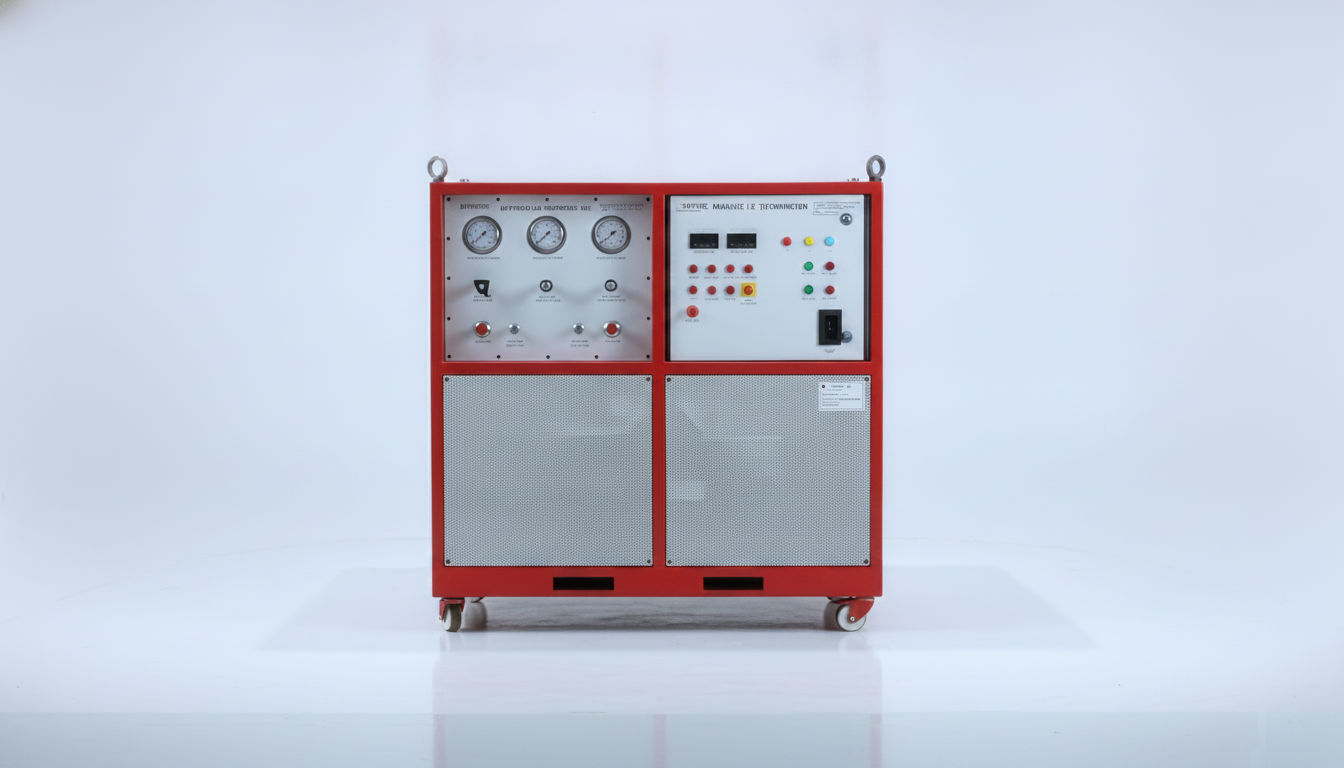

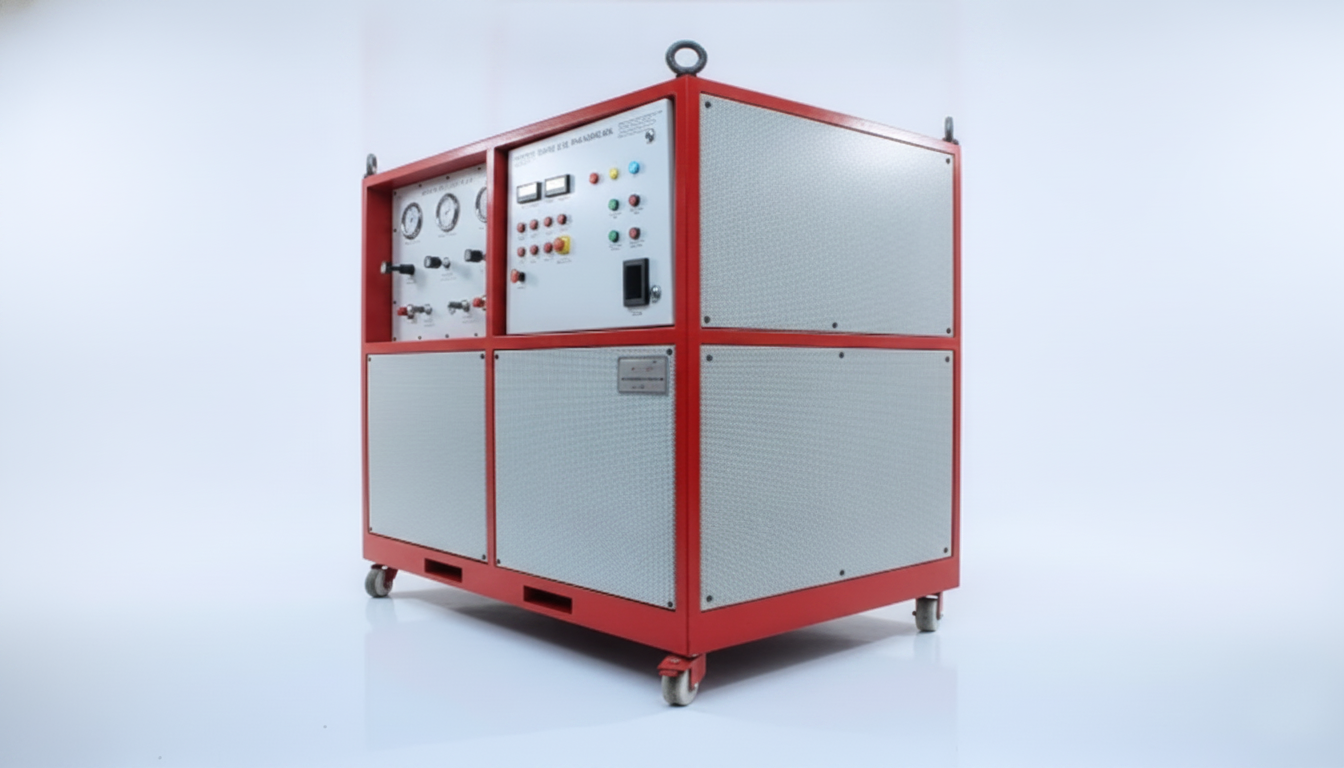

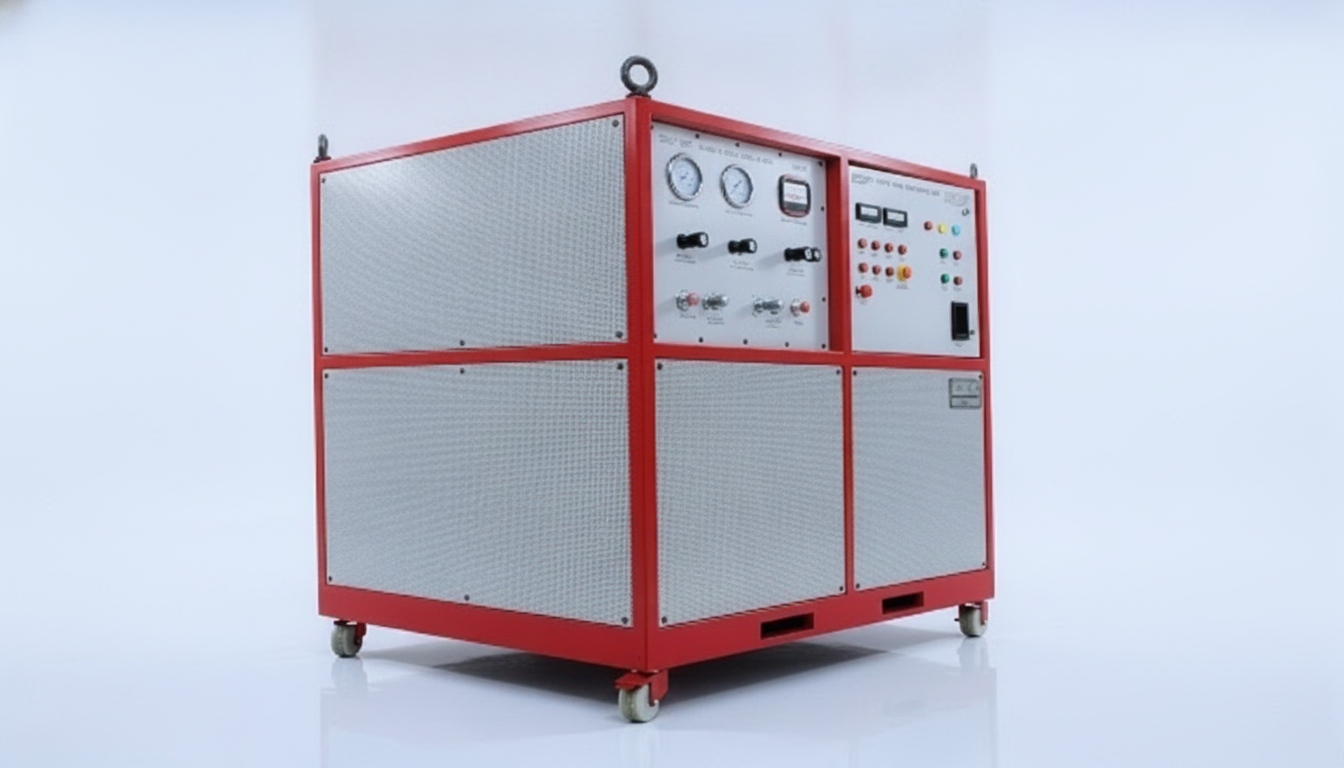

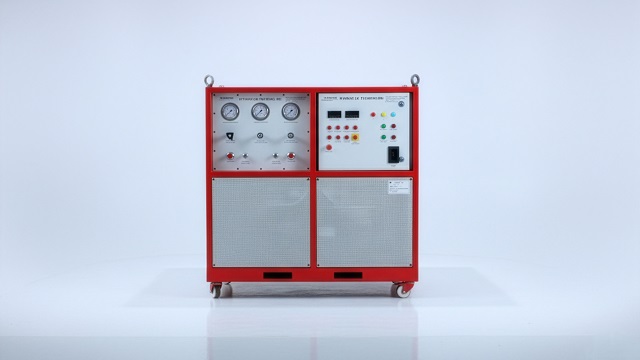

5. Advanced Monitoring and Control Panels
   - Electrical Panel: Features indicators for pressure, temperature, flow, oil level, operational hours, and clogging status.
   - Equipped with an emergency stop switch and independent start and stop controls for booster and main pumps - Mechanical Panel: Includes pressure gauges for booster, supply, and return lines, as well as needle valves for precise flow and pressure adjustments.
   - DRO Systems: Microcontroller-based digital readouts DROs display real-time pressure, temperature, and flow data with high accuracy.

6. Integrated Cooling System
   - Air-cooled system with a 2 HP motor ensures the hydraulic fluid remains below 60 degrees Celsius even under heavy-duty operation.
   - Cooling performance of 21.5 kW at 140 LPM ensures optimal temperature management for extended operation.

7. Robust and Portable Design
   - Built on a welded skid frame made of reinforced steel with forklift slots and lifting hooks for easy transportation.
   - Compact dimensions make it suitable for deployment in confined industrial spaces.

8. Safety and Reliability
   - Equipped with interlocks including emergency stop push buttons, low oil level cut-off switches, and over-temperature protection.
   - Pressure relief and unloading valves safeguard the system against overpressure conditions.
   - Ensures operator safety through automatic shutdown protocols when faults are detected.

Applications
   - The Hydraulic Flushing Rig is ideal for a wide range of applications including:
   - Pipeline Cleaning: Ensures hydraulic pipes are free of contaminants post-installation or maintenance.
   - Industrial Equipment Maintenance: Maintains cleanliness in hydraulic systems used in heavy machinery and manufacturing plants.
   - Precision Equipment Flushing: Guarantees contamination-free operation in aerospace and defense systems.
   - Power Plant Maintenance: Suitable for hydraulic circuits in turbines and cooling systems.

Included Tools and Accessories
   - Comprehensive spanner and Allen key sets for system assembly and maintenance.
   - Full-scale hydraulic and electrical circuit diagrams for troubleshooting and training.
   - Sampling ports and QCDC Quick Connect-Disconnect Couplings for fluid testing.

Safety Features
1. Real-Time Monitoring: Indicators for oil level, temperature, pressure, and clogging keep operators informed of system status.
2. Emergency Interlocks: Immediate shutdown is activated when unsafe operating conditions are detected.
3. Overpressure Protection: Relief valves prevent system damage during high-pressure conditions.

Why Choose Neometrix Defence Limited's Hydraulic Flushing Rig
   - Reliability: Engineered for long-term durability with corrosion-resistant materials and industrial-grade components.
   - Performance: High flow and pressure capacities ensure fast and thorough flushing for even the most demanding applications.
   - Ease of Use: User-friendly interface with labeled controls and indicators.
   - Comprehensive Support: Comes with detailed operation manuals, troubleshooting guides, and an extensive warranty.

The Hydraulic Flushing Rig stands as a testament to engineering excellence, ensuring peak performance, reduced downtime, and extended equipment life for industries worldwide.
